Causeway Professional Design Suite

Causeway Professional Design Suite (PDS) provides powerful, easy-to-use tools covering all aspects of earthworks, development site infrastructure, and highway design.

Causeway's PDS software is used widely by civil engineers. It incorporates modules for highway design, volumetrics, alignment design, overlay design, drainage design and vehicle path analysis, as well as functionality for creating road markings and designing traffic signs. With its intelligent 3D modelling capabilities and powerful integration functionality, PDS also delivers all of the benefits of Building Information Modelling (BIM) to the civil engineer.

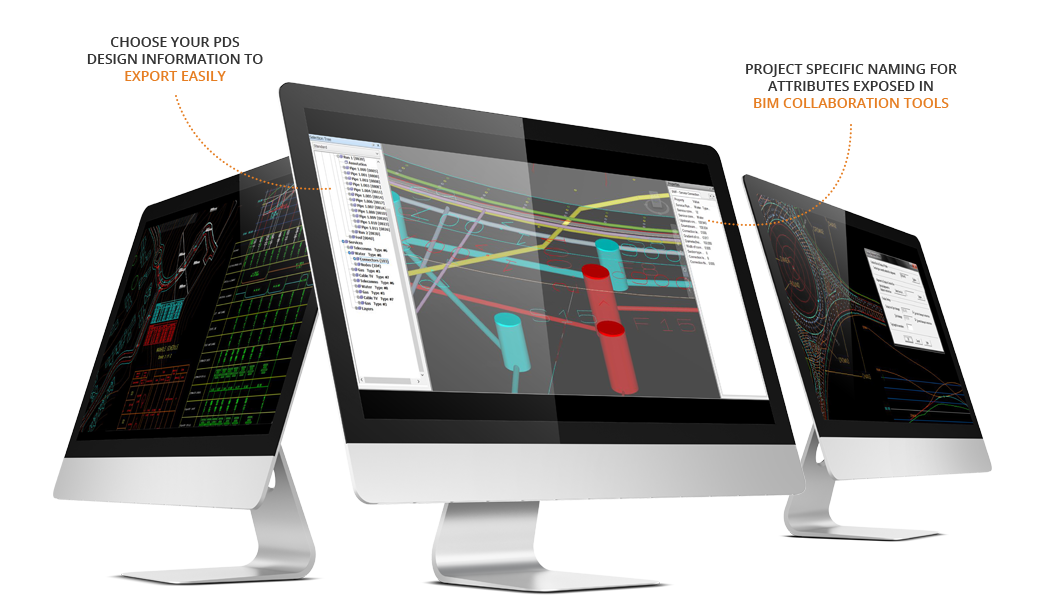

PDS Screenshots

Performance gains for you and your team

Team icon

Optimise the resources you have

Provide the team with the licences they require to work as efficiently as possible without breaking the bank.

Save money icon

All of the tools your team needs

Access all of the modules your team is likely to need, including digital modelling, road design, drainage design (including hydraulic modelling and simulation), road marking, traffic sign design, vehicle path analysis, and BIM.

BIM icon

BIM compliance

Gain access to the PDS BIM tools that deliver the BIM outputs clients require.

Add users icon

No need to wait for an available license

All engineers have access to licences on demand.

PDS modules

Access all of the modules you need

The new subscription bundles mean that the extra packages you would have liked but could not justify could now be available as standard in one of our bundles.

BIM icon

BIM outputs without changing your workflow

PDS BIM tools allow you to design as usual, but deliver BIM outputs as required.

Cloud

Network licencing as a standard

Gain a licence manager hosted by Causeway. All licences are wide area networked and ensure optimisation.

Compatability icon

CAD agnostic

PDS will run in AutoCAD but it is not essential as all software is CAD agnostic and will read and write DWG files as standard, therefore if you run AutoCAD LT it will still work for you.

Licence renewal icon

Rationalise your supply chain

If you currently have legacy software, PDS will provide your engineers with the latest tools. This will allow you to cut the annual maintenance you pay to other suppliers, saving money on your overall annual spend.

PDS Bundles

Causeway Professional Design Suite (PDS) software provides a range of modules for all aspects of earthworks design and quantification, development site infrastructure design, and highway design.

Essential

For those needing straightforward civil design capability
  • Ground modelling
  • Cut and Fill
  • Surface design
  • Storage / balancing pond / lagoon design
  • Borehole modelling
  • Horizontal and vertical alignment design
  • Carriageways / junctions / turning heads
  • Drainage network layout and annotation
  • Integration with MicroDrainage and Causeway Flow
  • Advanced alignment design
  • Network licencing
  • Flow – Storm / Foul network design, Storage and SUDS design and Simulation
  • Drive - vehicle path analysis
  • Road marking
  • Traffic Sign design including sign structure
  • Utilities / services / under and round building drainage
  • BIM level 2 outputs

Enterprise

For those needing a complete design suite and BIM outputs
  • Ground modelling
  • Cut and Fill
  • Surface design
  • Storage / balancing pond / lagoon design
  • Borehole modelling
  • Horizontal and vertical alignment design
  • Carriageways / junctions / turning heads
  • Drainage network layout and annotation
  • Integration with MicroDrainage and Causeway Flow
  • Advanced alignment design
  • Network licencing
  • Flow – Storm / Foul network design, Storage and SUDS design and Simulation
  • Drive - vehicle path analysis
  • Road marking
  • Traffic Sign design including sign structure
  • Utilities / services / under and round building drainage
  • BIM level 2 outputs
Training courses

At Causeway, we are committed to providing ongoing support for our products. We have a range of training courses, where you can learn about all the latest techniques and tips that will allow you to use PDS more effectively.

View courses

Not sure which Bundle is right for you?

Gain access to Causeway Professional Design Suite (PDS) by getting in touch with us.
We would be happy to discuss the best PDS Bundle for you.

Features

Ground Modelling

Digital model formation of surfaces from a wide variety for sources including DWG, GENIO, and Lidar. Standard outputs include spot levels, contours, cross sections and long sections. Powerful and dynamic updating ensures designs and annotation are always up to date.

Cut and Fill

Calculate earthworks quantities including construction build ups based on user defined material libraries. Display build ups maps to convey what has been used, grids of cut and fill levels, iospachyte contours or solid fill display, and formation models.

Surface Design

A tool set to allow the user to work with any type of irregular surface—ideal for the quick, effective and dynamic design of hardstandings, car park surfaces, and pitches. Better interfaces are easy to add to the model.

Storage / Balancing Pond / Lagoon Design

A unique wizard interface leads the user through the input to quickly model, quantify and calculate storage capacities. Dynamic updating allows the design to be tweaked and modified, with the updated outputs generated immediately. Designed ponds can be imported into Flow and analysed as part of the overall drainage network.

Borehole Modelling

An essential requirement of any site modelling exercise is the need to accurately represent sub-surface data based on geotechnical reports. This module will accept AGS data files directly from the geotechnical engineer, or allow the user to select and input the specific strata of relevance to the project. Sub surface models are automatically generated which can be interrogated for grids of levels, sections and volumes.

Horizontal and Vertical Alignment Design

PDS allows fully dynamic design of any type of route alignment. Designs and documentation to clear UK standards can be generated out of the box. There is no need to configure a whole range of settings before you are able to produce the information for submitting and setting out what your clients need and expect.

Carriageways / Junctions / Turning Heads

Carriageways (including freeform channels), junctions and turning areas are generated with ease, crossfalls and construction added and any of the design dynamically edited at any stage in the process. Any changes are automatically reflected in all associated features and output such as sections, annotation, and external reports.

Advanced Alignment Design

This is an extension to standard alignments for the design of major routes, with automatic and user-controlled transition curve, super-elevation application, and complex junction and roundabout designs. We also have tools to aid users designing by the Stockdale rolling crown method.

Drive - vehicle path analysis

Drive is the latest innovation in easy to use vehicle path analysis. Standard libraries are provided for groups of vehicles, including DB32, FTA 1983/1998, ICE, London Fire Brigade, TfL, and TRRL SR662. Users can edit the standard vehicles and add to the libraries via a wizard interface. The paths are generated by driving the vehicle with straight-ahead, maximum left / right predictor polygons displayed to aid the user.

Drainage Network Layout and Annotation

Storm and foul drainage networks are laid out, manipulated and edited with tools that will automatically sense manhole locations and apply depth rules appropriately. Catchment areas can be identified with multiple areas and different permeability factors applied, loaded and recorded for reference purposes. Drainage sections, combined road / drainage sections, manhole schedules and powerful user controllable annotation styles are all included.

Integration with MicroDrainage and Causeway Flow

The layout completed in PDS is exported to Causeway Flow for hydraulic analysis of the network. A dynamic link is established and any changes made in Flow will automatically be highlighted in PDS, giving the user the opportunity to accept the changes or investigate further. Importantly, all aspects of the Flow design are carried back to PDS, including flow controls and storage devises, which are essential for a complete design and BIM output. 3D networks are generated automatically in PDS from the hydraulic design. Support for MicroDrainage integration is also included.

Flow – Storm / Foul Network Design, Storage and SUDS Design, Simulation, and Advanced Sim

Flow makes drainage design an intuitive process, from determining storm water storage requirements to calculating the discharge rates and volumes. Flow has the tools to design foul and storm water drainage networks, size up storage structures and incorporate SuDS features, then simultaneously analyse drainage submissions over a range of storm durations and return periods with climate change.

Utilities / Services / Under and Round Building Drainage

This module addresses the growing need for our customers to model all underground utilities, not just drainage. The services module includes specific tools to aid the user model under and round building drainage, bridging the gap between the structure and surrounding infrastructure.

Road Marking

Flexible, powerful and easy to use CAD independent (read and write DWG) software for the design and preparation of road markings in accordance with TSRGD using fully compliant fonts and symbols and line types. In-place editing provides great productivity gains and flexibility, and the dynamic nature of the markings ensures that any associated annotation reflects any changes made. Outputs are in drawing and BIM formats.

Traffic Sign Design and Sign Structure

Flexible, powerful and easy to use CAD independent (read and write DWG) software for the design and preparation of traffic signs in accordance with TSRGD using fully compliant fonts and symbols. Post and foundation design is all part of the package and can be output in drawing and BIM formats.

Network Licencing

Standardised wide-area network licencing offering our customers maximum flexibility and optimum licence utilisation for all of the functionalities of PDS Bundles. Licencing is controlled via a cloud-based licence manager hosted by Causeway, allowing access by users from any location with an internet connection. Licence borrowing is a feature that allows a licence to be borrowed from the network to a local PC for a given period of time, after which it is automatically reverted to the network pool.

BIM Level 2 Outputs

BIM compliance demands much more than 3D model output. All packages in the PDS Enterprise Bundle contribute to the BIM workflow with user controllable attribute data attached when generating outputs for BIM collaboration.
